Excavator Control Pattern Change Valve - Unscrew the bolt holding the lever in place; They are commonly referred to as the sae pattern and the iso pattern. Same as yours.you should see a flat piece of metal with a big bolt head, and a smaller bolt head. But other operators are familiar with old cat style controls. To put it simply, if the pilot line hoses from joystick valves go straight to the main control valve chest, no worries, it's actually simple to incorporate the pattern changer. It does not have a pattern changer so i was wondering if someone could tell me which pilot hoses to. Standing at rear, operators side, cab side, left, back door. It is designed to be used where switching pilot pressure patterns may be desirable and eliminates equipment downtime, labor, and environmental. Extend dipper (stick) away from you. The differences between the two are in which hands control the boom and.

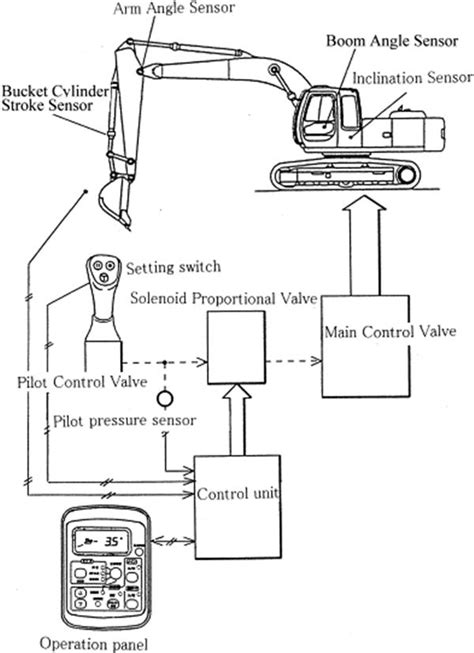

Cat Excavator Control Pattern Diagram Wiring Site Resource
Turn the lever to change the pattern; Standing at rear, operators side, cab side, left, back door. Remove the small bolt and push or pull.

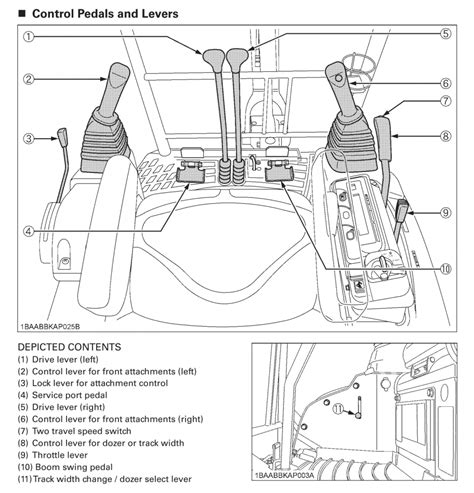

how to change controls on kubota excavator?
Make sure the machine is turned off and the hydraulic pressure is relieved before proceeding. Web the trick is where you locate it in the.
Mini Excavator How to Operate Controls in 3 Easy Steps
Unscrew the bolt holding the lever in place; Just started working for a company that runs deere controls. Web here are the patterns: Web to.
Howtochangecontrolpatternonkobelcoexcavator natthrozan
The first thing on our list of things to do to the excav. 5.5k views 1 year ago. I am most familiar with backhoe control..
32+ How Do I Change The Control Pattern On My Excavator PNG
Bring dipper (stick) toward you. Inside and down to left. Web holmbury’s pc series pattern changer spool valve is designed to switch joystick functionality on.
0856455 VALVE GROUPPILOT CONTROL PATTERN CHANGE EXCAVATOR
Web to change the control pattern on your excavator, locate the control pattern selector valve. Locate the pattern control changer underneath the seat; I have.
Cat Excavator Pattern Change To Backhoe Pattern (Cat John Deere
Just started working for a company that runs deere controls. Bring dipper (stick) toward you. Locate the pattern control changer underneath the seat; Unscrew the.
!LINK! Howtochangecontrolpatternonvolvoexcavator
The first thing on our list of things to do to the excav. Web to change the excavator control pattern on any john deere rental.
0856455 VALVE GROUPPILOT CONTROL PATTERN CHANGE EXCAVATOR
Unscrew the bolt holding the lever in place; Loosen a safety bolt with a 13 or 14 mm socket to turn valve. The machine is.
How to switch case excavator control pattern YouTube
The most common setup for operator controls, the iso pattern is as follows: The first thing on our list of things to do to the.
Same As Yours.you Should See A Flat Piece Of Metal With A Big Bolt Head, And A Smaller Bolt Head.
Remove the small bolt and push or pull the metal. I do not have a particular chart but it is actually easy enough to figure out on this machine and any excavator set up with pilot control lines. Web to change the valve position, first locate the control pattern selector valve. But other operators are familiar with old cat style controls.
Make Sure The Machine Is Turned Off And The Hydraulic Pressure Is Relieved Before Proceeding.
Web we have a 1997 312 bl.8jr. I assumed it had a pattern changer, but unfortunately it doesn't, so it looks like im going to have to do it the old fashioned way lol. The valve is located at the front of the swing drive. I have a cat 225blc cat excavator.
Need To Know If There Is A Easy Way To Change It To Cat Controls.
Flip the operation card on the right window to match the current configuration (osha rule). Replace the bolt to keep the lever in position and keep it from vibrating during. Ensure that the excavator is turned off and the hydraulic pressure is. 178k views 4 years ago.
Unscrew The Bolt Holding The Lever In Place;
Behind right hand elbow as if sitting in seat, on back dash panel, behind plastic cover. The most common setup for operator controls, the iso pattern is as follows: Web to change the control pattern on your excavator, locate the control pattern selector valve. Inside and down to left.
